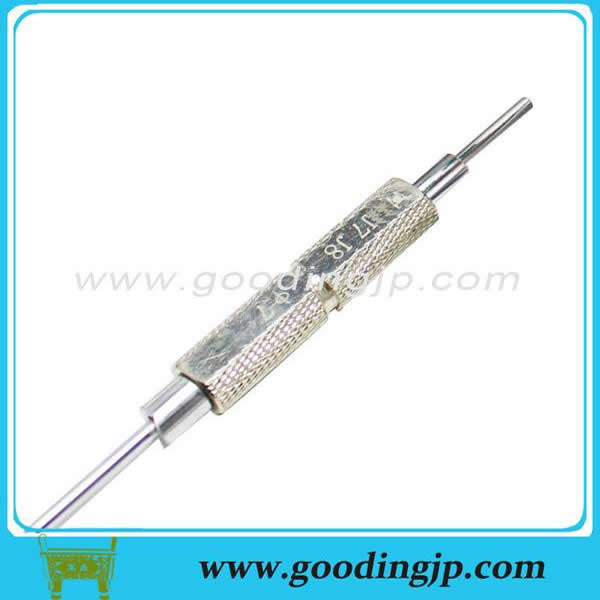

Double head detection pin

Any shape and size can be customized

Checking parts

Standard parts of automobile inspection tools

Product name: Double-headed detection pin

Material: SKD11/SKH51/SUS404, etc.

Hardness: above HRC58

Surface treatment: chrome plating, nickel plating, etc.

Color: as required

Remarks: can be customized

Features:

1. Full rust prevention

2. High accuracy

3. Good wear resistance

4. Beautiful appearance

GET A QUOTE

If you have a query regarding our product range or services, please complete thecontact form below and we'll contact you straight away.

GET A QUOTE

E-mail:jenny@goodingjp.com

Description

[ M ]Material	[ H ]Hardness	①Standard		②Stepped
[ M ]Material	[ H ]Hardness	Type	Material Code	Type	Material Code
1045 Carbon Steel	-	KJP	SC	(S 0 -0.02/F 0 -0.05) KJP (S_g6/F 0 -0.03) KJPG	DC
1045 Carbon Steel	45HRC~		SHC		DHC
304 Stainless Steel	-		SCS		DCS
[ ! ]1 440C Stainless Steel	45~50HRC		SCC		DCC

[ ! ]Some combinations are unavailable. Refer to the price list to select the available combination.

Specifications

Part Number

Type

Config.
Material Code

KJPDC16

P10.97

W8.47

S6.00

F2.0

B10

S	g6
3.00	-0.002 -0.008
3.01~ 6.00	-0.004 -0.012
6.01~10.00	-0.005 -0.014
10.01~18.00	-0.006 -0.017
18.01~29.00	-0.007 -0.020

Select Type, Material Code and D Dimension.

Part Number					0.01mm Increment			0.1mm Increment	1mm Increment		M
①Standard		②Stepped		D	P	W	S ②Stepped Type only	F (F≤S/2) ②Stepped Type only	L	B ②Stepped Type only
Type	Material Code	Type	Material Code
KJP	SC SHC SCS SCC	(S 0 -0.02/F 0 -0.05) KJP (S_g6/F 0 -0.03) KJPG	DC DHC DCS DCC	8	4.00~6.00	P>W>S (W≥3.01)	3.00~ 5.00	0.3~2.5	Standard 5~30*1 Stepped 5~20	Stepped Type only 5~20	M4
				10	4.00~8.00		3.00~ 7.00	0.3~3.5			M5
				12	4.00~10.00		3.00~ 9.00	0.5~4.5
				16	6.00~14.00		4.00~13.00	0.5~6.5
				20	10.00~18.00		6.00~17.00	1.0~8.5
				25	14.00~22.00		8.00~21.00	2.0~10.5
				10L	10.00~16.00		5.00~15.00	1.0~7.5
				12L	12.00~20.00		6.00~19.00	2.0~9.5
				16L	16.00~25.00		8.00~24.00	2.0~12.0
				20L	20.00~30.00		10.00~29.00	2.0~14.5

[ ! ]Large Head Type (D=10L~20L) is only available for 1045 Carbon Steel. [ ! ]When the S dimension tolerance is g6, D-Shaped section cannot be made very thin. (S≥5.00 F≥1.0; F≥1.5 when D=20)
*1 L=21~30 is available only when the following conditions are all satisfied: Material: 1045 Carbon Steel Handle Dia. D≥10, Pin Dia.: P≥6, W≥5
