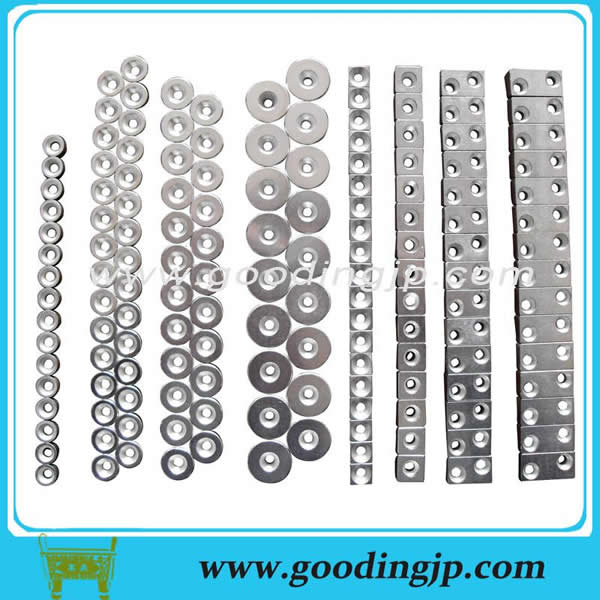

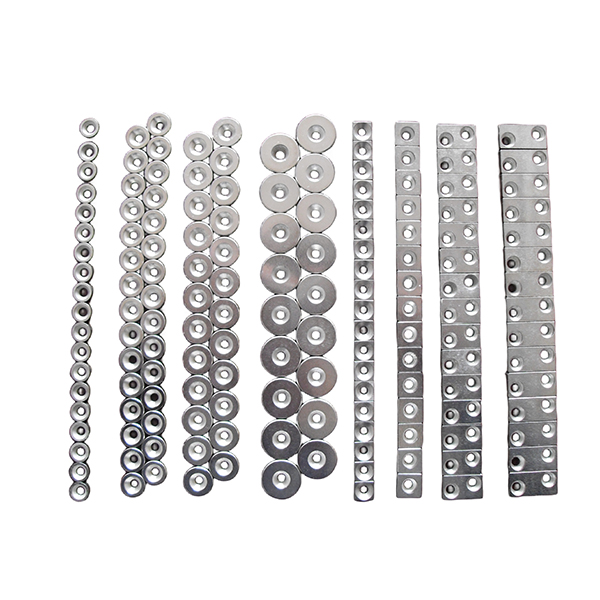

Reference block (S side)

Material: SKD11/SKH51/SKH61/SUS304, etc.

Various shapes

Exquisite appearance

Reasonable price

GET A QUOTE

If you have a query regarding our product range or services, please complete thecontact form below and we'll contact you straight away.

GET A QUOTE

E-mail:jenny@goodingjp.com

Description

Type			[ M ]Material	[ H ]Hardness
No Hole	Hole	Blank	[ M ]Material	[ H ]Hardness
KJTC	KJTCH	KJTCB	1018 Carbon Steel	-
KJTCY	-	-	1045 Carbon Steel	40~45HRC

Specifications

Part Number	-	T	-	V	-	M
KJTC10-2 KJTCH30 KJTCB19 KJTPM12	- - - -	3 5 3 3	-	V12	-	M6

■No Hole

Part Number		Number of Countersinks	T	A	B
Type	No.	Number of Countersinks	T	A	B
(No Hardened) KJTC (Hardened) KJTCY	10	1	2 3 5	10	10
	10-15			10	15
	10-20			10	20
	15			15	15
	15-20			15	20
	18	2		18	18
	20	2		20	20
	20S	1		20	20
	20-25	2		20	25
	20-30			20	30
	20-40			20	40
	25			25	25
	30			30	30
