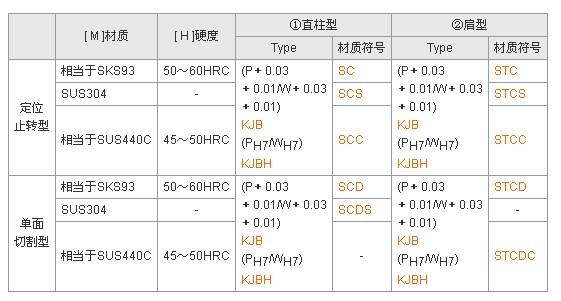

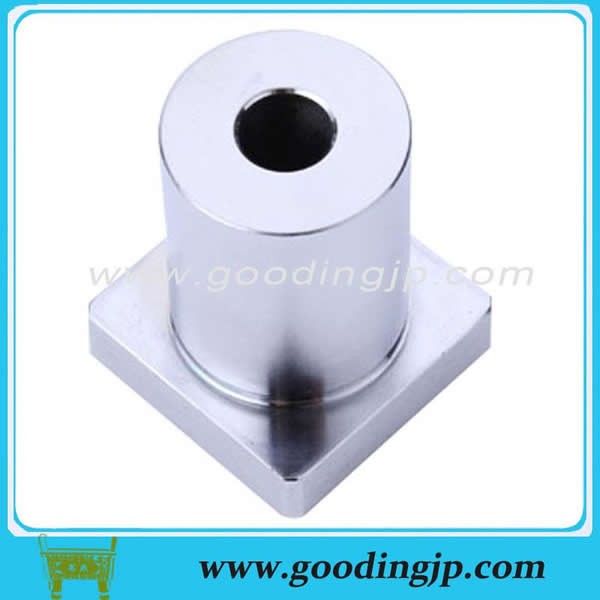

[ M ] Material	[ H ] Hardness	①Straight		②Shouldered
		Type	Material Code	Type	Material Code
Dowel Pin	SKS93 Tool Steel (JIS) Equivalent	50~60HRC	(P+0.03 +0.01/W+0.03 +0.01) KJB (PH7/WH7) KJBH	SC	(P+0.03 +0.01/W+0.03 +0.01) KJB (PH7/WH7) KJBH	STC
	304 Stainless Steel	-		SCS		STCS
	440C Stainless Steel	45~50HRC		SCC		STCC
D Cut	SKS93 Tool Steel (JIS) Equivalent	50~60HRC	(P+0.03 +0.01/W+0.03 +0.01) KJB (PH7/WH7) KJBH	SCD	(P+0.03 +0.01/W+0.03 +0.01) KJB (PH7/WH7) KJBH	STCD
	304 Stainless Steel	-		SCDS		-
	440C Stainless Steel	45~50HRC		-		STCDC

[ ! ]Some combinations are unavailable. Refer to the price list to select the available combination.

Specifications

Part Number

-

P

-

W

-

L

-

T

Type

Material Code

D

KJB

STC

12

-

P9.50

-

W4.50

-

L15

-

T2

P, W	H7
3.00~ 6.00	+0.012 0
6.01~10.00	+0.015 0
10.01~18.00	+0.018 0
18.01~27.00	+0.021 0

Select Type, Material Code, D Dimension (For details, refer to ordering example below).

Part Number

All Types

②Shouldered Type only

Type

Material Code

D

0.01mm Increment

L

R

T

H

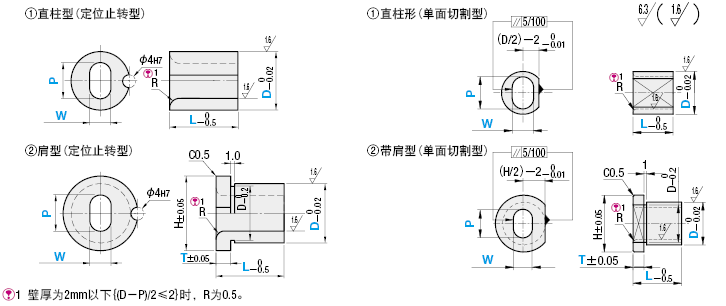

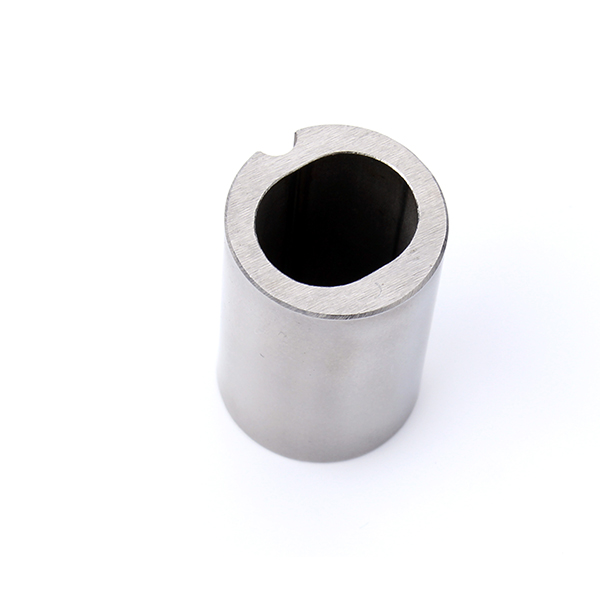

Straight, Dowel[ ! ]2

Straight, D-Cut

Shouldered, Dowel[ ! ]2

Shouldered, D-Cut

P

W

1mm Increment

(P+0.03 +0.01/W+0.03 +0.01) KJB (PH7/WH7) KJBH

SC SCS SCC

SCD SCDS

STC STCS STCC

STCD STCDC

8[ ! ]3

4.00~ 6.00

P>W (W≥3.00)

(Straight) 5~20 (Shouldered) 10~20

2.0

2

3

5

D+4

10

4.00~ 8.00

12

4.00~10.00

16

6.00~14.00

20

10.00~18.00

25

14.00~22.00

30[ ! ]4

20.00~27.00

-

-

[ ! ]2 For Straight Type, there must be a 1mm or greater wall thickness between dowel hole and slotted hole ({(D−W)/2}−2≥1).
[ ! ]3 D=8 is applicable to Shouldered Type only. [ ! ]4 D=30 is applicable to material of SKS93 Tool Steel (JIS) Straight Type only.
