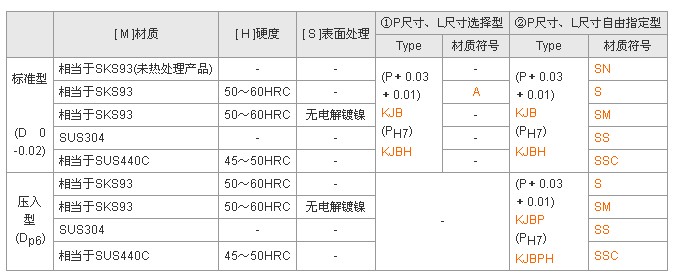

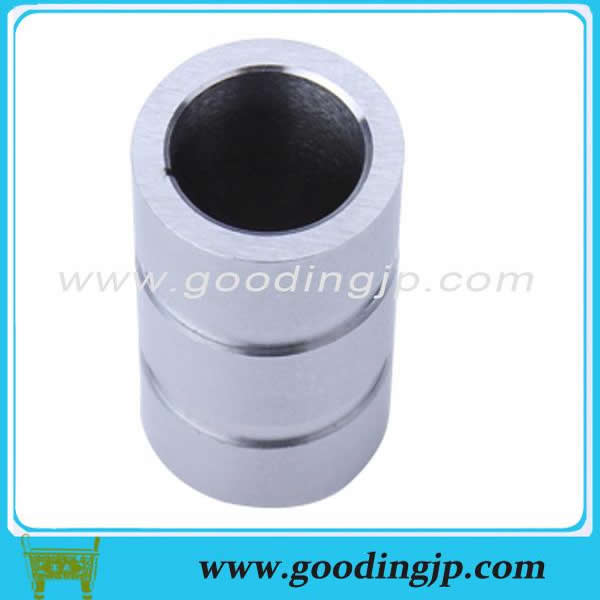

[ M ]Material	[ H ]Hardness	[ S ] Surface Treatment	①P, L Selectable		②P, L Configurable
			Type	Material Code	Type	Material Code
Standard Type (D   0 -0.02)	SKS93 Tool Steel (JIS) Equivalent (Raw Material)	-	-	(P+0.03 +0.01) KJB (PH7) KJBH	-	(P+0.03 +0.01) KJB (PH7) KJBH	SN
	SKS93 Tool Steel (JIS) Equivalent	50~60HRC	-		A		S
	SKS93 Tool Steel (JIS) Equivalent	50~60HRC	Electroless Nickel Plating		-		SM
	304 Stainless Steel	-	-		-		SS
	440C Stainless Steel	45~50HRC	-		-		SSC
Press Fit Type (Dp6)	SKS93 Tool Steel (JIS) Equivalent	50~60HRC	-	-		(P+0.03 +0.01) KJBP (PH7) KJBPH	S
	SKS93 Tool Steel (JIS) Equivalent	50~60HRC	Electroless Nickel Plating				SM
	304 Stainless Steel	-	-				SS
	440C Stainless Steel	45~50HRC	-				SSC

[ ! ]Some combinations are unavailable. Refer to the price list to select the available combination

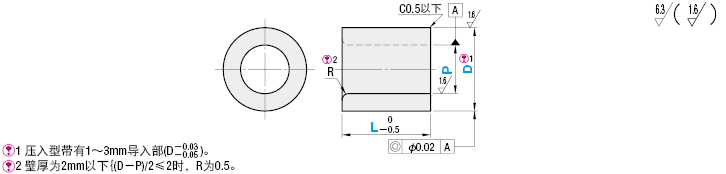

Specifications

Part Number					-	P	-	L
Type		Material Code		D
KJB KJB		A S		16 10	- -	P12 P3.97	- -	L15 L10

P	H7
2.00~ 3.00	+0.001 0
3.01~ 6.00	+0.012 0
6.01~10.00	+0.015 0
10.01~18.00	+0.018 0
18.01~30.00	+0.021 0
30.01~32.00	+0.025 0

■①P, L Selectable: Select Type, Material Code, D Dimension (For details, refer to ordering example below).

Part Number			P	L			R
Type	Material Code	D
(P+0.03 +0.01) KJB	A	10	3	10			1.0
			4	10	15
			5	10	15
			6	10	15		0.5
			8		15
		12	6		15		2.0
			8		15	20	0.5
			10		15
		16	10		15	20	2.0
			12		15	20	0.5

Part Number			P	L				R
Type	Material Code	D
(PH7) KJBH	A	10	4	10	15			1.0
			5		15
			6		15			0.5
		12	6		15			2.0
			8		15	20		0.5
		16	8			20		2.0
			10		15	20
			13			20	25	0.5

■②P, L Configurable

Part Number					P 0.01mm Increment	L 1mm Increment	R
Type		Material Code		D
		Standard	Press Fit
		SN S SM SS[ ! ]3 SSC	S SM SS[ ! ]3 SSC	8	2.00~ 6.00	5~40 When P<5 L≤Px4 When P≥5 L≤Px3	1.0
Standard Type				10	2.00~ 8.00
(P+0.03 +0.01)	(PH7)			12	4.00~10.00		2.0
KJB	KJBH			16	8.00~14.00
Press Fit Type				20	10.00~18.00
(P+0.03 +0.01)	(PH7)			25	15.00~23.00
KJBP	KJBPH			30[ ! ]4	20.00~27.00
				35[ ! ]4	25.00~32.00

[ ! ]3 For 304 Stainless Steel, there must be a 2mm or greater wall thickness {(D-P)/2≥2}. [ ! ]4 D=30 and 35 are applicable to SKS93 Tool Steel (JIS) (except electroless nickel plating) only.
