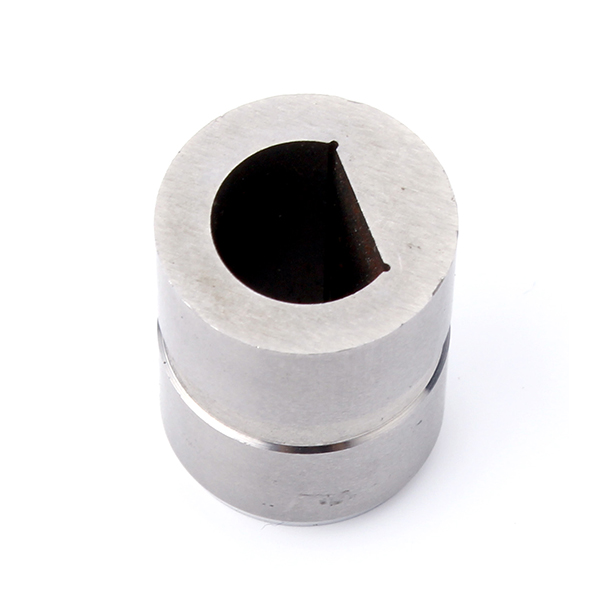

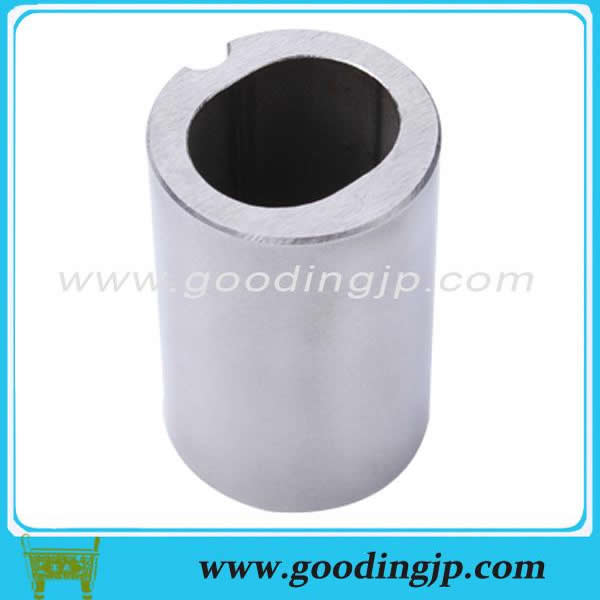

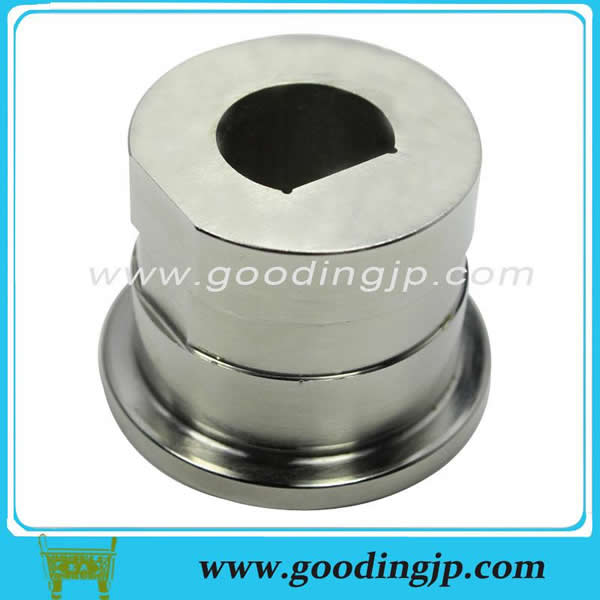

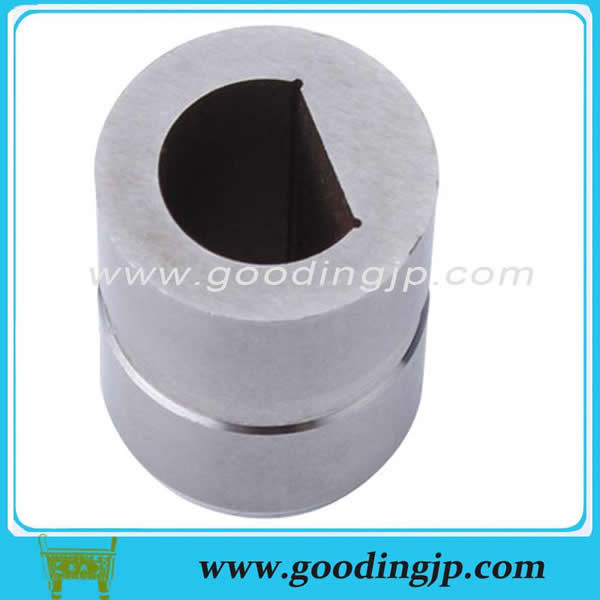

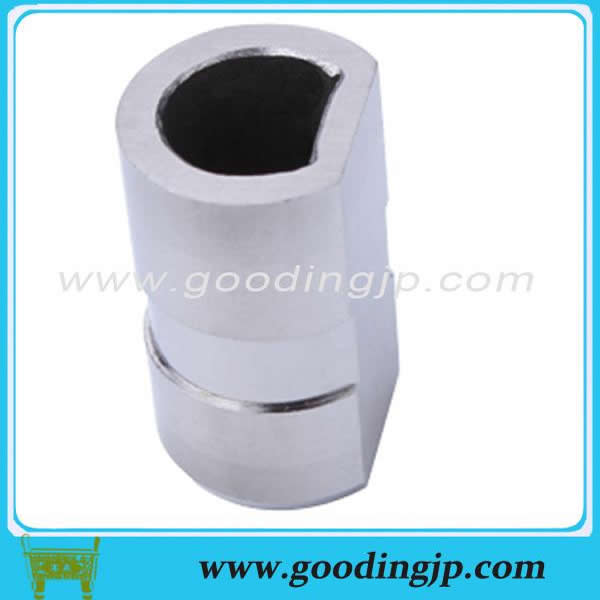

D hole anti-rotation pin round sleeve

Bushings for inspection jigs, missing round type

Standard processed products

Product name: D hole anti-rotation pin round sleeve

Material: SKD11 etc.

Surface treatment: nickel plating, chrome plating, etc.

Remarks: can be customized

Features:

1. Full rust prevention

2. Good wear resistance

3. High accuracy

4. Exquisite appearance, etc.

GET A QUOTE

If you have a query regarding our product range or services, please complete thecontact form below and we'll contact you straight away.

GET A QUOTE

E-mail:jenny@goodingjp.com

Description

[ M ] Material	[ H ] Hardness	[ S ] Surface Treatment	①Straight		②Shouldered
[ M ] Material	[ H ] Hardness	[ S ] Surface Treatment	Type	Material Code	Type	Material Code
SKS93 Tool Steel (JIS) Equivalent	50~60HRC	-	(P+0.03 +0.01/F+0.05 0)KJB (PH7/F+0.03 0) KJBH	SK	(P+0.03 +0.01/F+0.05 0)KJB (PH7/F+0.03 0) KJBH	STK
SKS93 Tool Steel (JIS) Equivalent	50~60HRC	Electroless Nickel Plating		SKM		-
304 Stainless Steel	-	-		SKS		-
440C Stainless Steel	45~50HRC	-		SKC		STKC

[ ! ]Some combinations are unavailable. Refer to the price list to select the available combination.

Specifications

Part Number	-	P	-	F	-	L	-	T
KJBSTK12	-	P8.00	-	F3.0	-	L10	-	T3

P	H7
3.00~6.00	+0.0120
6.01~10.00	+0.0150
10.01~18.00	+0.0180
18.01~21.00	+0.0210

Select Type, Material Code and D Dimension.

Part Number				All Types			②Shouldered Type only
Type	Material Code		D	P0.01mm Increment	F (F 0.1mm Increment	L1mm Increment	T			H
	[ ! ]1Straight	Shouldered
(P+0.03+0.01/F+0.050)KJB(PH7/F+0.030)KJBH	SKSKMSKS[ ! ]2SKC[ ! ]2	STKSTKC[ ! ]2	[ ! ]38	3.00~ 5.00	0.3~ 2.4	5~25	2	3	5	D+4
			10	3.00~ 7.00	0.3~ 3.0
			12	3.00~ 9.00	0.5~ 4.0
			16	4.00~13.00	0.5~ 6.0
			20	6.00~17.00	1.0~ 8.0
			25	8.00~21.00	2.0~10.0

[ ! ]1 For Straight Type, there must be 1mm or greater wall thickness between D bore part and dowel hole (D/2−F≥3). For 304 Stainless Steel, there must be a 2mm or greater wall thickness (D/2−F≥4). [ ! ]2 For 304 Stainless Steel, there must be a 2mm or greater wall thickens between D bore part and outer dia. (D−P/2≥2).
[ ! ]3 D=8 is not available for 304 Stainless Steel Straight Type.
