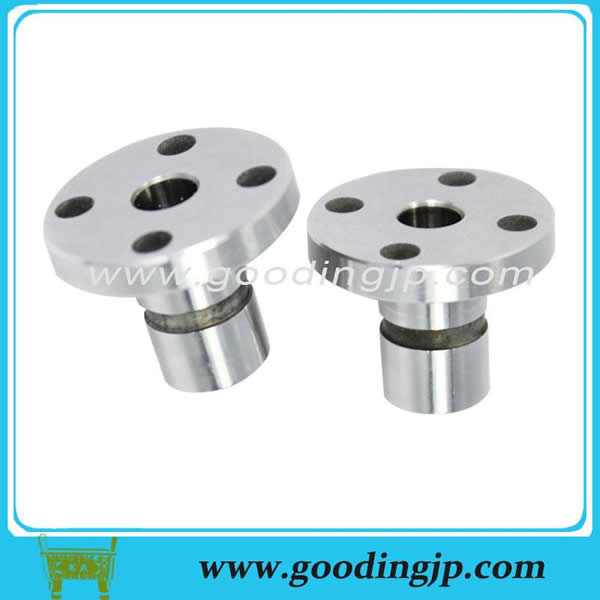

Bushings for Inspection Jigs Straight Type Shoulder Type
Bushings for inspection jigs Straight type
Standard processed products
Product name: Benchmark set
Material: SKD11 etc.
Surface treatment: nickel plating, chrome plating, etc.
Remarks: can be customized
Features:
1. Full rust prevention
2. Good wear resistance
3. High accuracy
4. Exquisite appearance, etc.
|
[ M ] Material |
[ H ] Hardness |
[ S ] Surface Treatment |

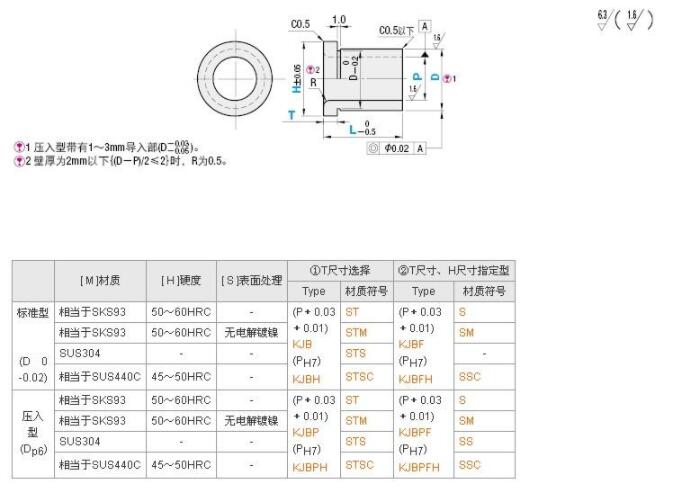

①Straight | ②Shouldered, T Dimension Selectable | ③Shouldered, T, H Dimension Configurable | ||||
| Type | Material Code | Type | Material Code | Type | Material Code | ||||
|
Standard Type (D 0 -0.02) |
SKS93 Tool Steel (JIS) Equivalent | 50~60HRC | - |
(S+0.03 +0.01) KJB (SH7) KJBH |
D |
(S+0.03 +0.01) KJB (SH7) KJBH |
DT |
(S+0.03 +0.01) KJBF (SH7) KJBFH |
D |
| SKS93 Tool Steel (JIS) Equivalent | 50~60HRC | Electroless Nickel Plating | DM | - | - | ||||
| 304 Stainless Steel | - | - | DS | - | - | ||||
|
Press Fit Type (Dp6) |
SKS93 Tool Steel (JIS) Equivalent | 50~60HRC | - | - | - |
(S+0.03 +0.01) KJBP (SH7) KJBPH |
DT |
(SH7) KJBPFH |
D |
| 304 Stainless Steel | - | - | - | DTS | - | ||||
| Part Number | - | P | - | S | - | L | - | B | - | T | - | H |
|
KJBDT12 KJBFD12 |
- - |
P8.00 P8.00 |
- - |
S4.00 S4.00 |
- - |
L10 L10 |
- - |
B5 B5 |
- - |
T3 T3.5 |
- |
H15 |
| S | H7 |
| 3.00~6.00 |
+0.012 0 |
| 6.01~10.00 |
+0.015 0 |
| 10.01~18.00 |
+0.018 0 |
| 18.01~21.00 |
+0.021 0 |
| Part Number | All Types | ②T Selectable Type only | ③T, H Dimension Configurable Type only | ||||||||||||||
| Type | Material Code | D | 0.01mm Increment | 1mm Increment | R | T±0.05 | H |
T ±0.01Specify 0.1mm Increment |
H 1mm Increment |
||||||||
| Straight | T | T, H Configurable | P | S | L | B | |||||||||||
|
(Standard) (Press Fit) |
KJB KJBH KJBP KJBPH |
KJBF KJBFH KJBPFH |
D DM DS[ ! ]3 |
DT DTS[ ! ]3 |
D | 8 | 4.00~ 6.00 | 3.00~ 5.00 |
3~25 L≤Px3 No R for L3 and L4. |
5~25 When S≤3.59 B≤Sx2.5 When S≥3.60 B≤Sx3 |
1.0 | 2 | 3 | 5 | D+4 | 2.0~5.5 | 10~14 |
| 10 | 4.00~ 8.00 | 3.00~ 7.00 | 2.0 | 12~17 | |||||||||||||
| 12 | 5.00~10.00 | 3.00~ 9.00 | 14~20 | ||||||||||||||
| 16 | 8.00~14.00 | 4.00~13.00 | 18~26 | ||||||||||||||
| 20 | 10.00~18.00 | 6.00~17.00 | 22~37 | ||||||||||||||
| 25 | 15.00~23.00 | 8.00~21.00 | 27~40 | ||||||||||||||
